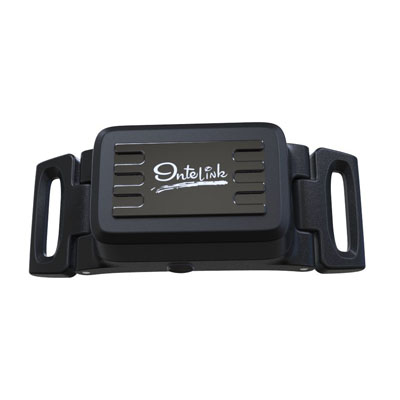

The PET 210 GPS pet tracker is the latest in GPS tracking technology for your pets. With thousands of pets going missing or being stolen, the PET 210 has a leading edge Android / iPhone APP, specially designed for PET-210 Pet Tracker so that you can track your pet from your smartphone. It supports Real-time Tracking, Geo-fence Alarm, Low Battery Alarm and History Playback, PET 210 helps you keep in touch with your pet through Smart phone. If you pet leaves an area that has been geo fenced an alert will be sent directly to your smartphone to notify you.
• Set the Geo-Fence with your iPhone or Smart Phone via BLE4.0 technology. The working range is around 40 meters in open space.
• Built-in 710mA Li-Polymer battery, the working time could last around 1 year as long as your pets are within the Geo-Fence range.
• When your pets run away from the Geo-Fence area, GPS will be turned on automatically and send an alarm to your phone and show the location on the map.
• Built-in u-Blox MAX7 GPS module to support fast positioning by AGPS in the city area and by Cell ID even without GPS signal.
• Working with both Android & iOS APP.
• Support Smart Tracking Mode.
• Auto Power Saving.
• Support Low Power Alert.
• The device also features real-time tracking, so you can watch where he goes, a history function that logs doggie wanderings, and a low-power alarm.
MAX7 GPS module
Receiver type
56 Channels
GPS L1C/A
SBAS L1C/A
QZSS L1C/A
Time-To-First-Fix
MAX-7C
Cold Start
30 s
Warm Start
28 s
Hot Start
1 s
Aided Starts2
5 s
Sensitivity
MAX-7C
Tracking & Navigation
-160 dBm
Reacquisition
-160 dBm
Cold Start
-147 dBm
Warm Start
-148 dBm
Hot Start
-155 dBm
Horizontal position accuracy4
Autonomous
2.5 m
SBAS
2.0 m
Accuracy of time pulse signal
RMS
30 ns
99%
60 ns
Frequency of time pulse signal
0.25 Hz … 10 MHz (configurable)
Max navigation update rate
10 Hz
Velocity accuracy5
0.1 m/s
Heading accuracy5
0.5 degrees
Operational limits6
Dynamics
Altitude
Velocity
≤ 4 g
50,000 m
500 m/s
SARA350
Air Interface
GSM or GPRS Quad Band
GPRS
Power Consumption
GSM 850 / 900 / 1800 / 1900 MHz
3GPP Release 99
class 4 (2 W) for 850/900 bands
class 1 (1 W) for 1800/1900 bands
GPRS Class 10, CS1-CS4-up to 85.6 kb/s
PBCCH support
Power Off - < 90 μA
Idle Mode - <1.6 mA
Telephony GSM - < 300mA
GPRS class 10 - 410 mA
Voice HR / FR / EFR / AMR
Echo cancellation
Noise reduction
Protocols Embedded TCP/IP, UDP/IP,
HTTP/FTP
Network Jamming detection
GNSS Interfaces Direct access to
u-blox
GNSS via module
AssistNow software for faster
acquisition
CellLocate & Hybrid Positioning
Special features inBand modem
eCall and ERA-GLONASS support
nRF51 Series
Common IC architecture
ARM Cortex-M0 processor
Multi-protocol 2.4GHz radio
Common software architecture
Bluetooth low energy and ANT
Easy, fast and safe application
code-development
Up to 9.5dB better link budget
More robust radio link / longer range
Up to +4dBm TX output power
-85 to -96dB RX sensitivity
Up to 50% lower current
consumption
Powerful CPU reduces processing time
100X faster and lower power CPU start-up
PPI event and task controller reduces
CPU activity
Flexible power management
