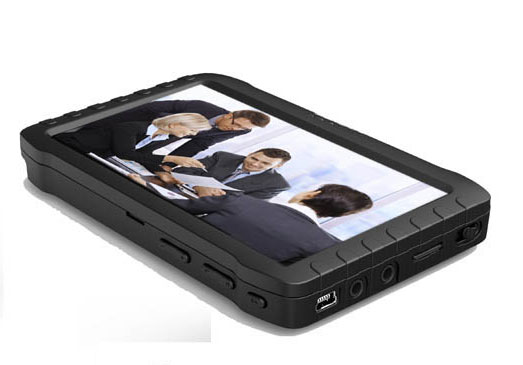

TE968H 5-inch HD Portable 2.4GHz wireless mini DVR supports wireless and wired cameras

Details

TE968H 5-inch HD Portable 2.4GHz wireless mini DVR supports wireless and wired cameras

The latest 5-inch HD Portable 2.4GHz wireless mini DVR-TE968H supports wireless & wired camera, photo function; motion detect recording, cycle recording, memory up to 32G card.

TE968H is a new generation portable mini DVR developed by our company.It supports both wireless and wired cameras. Not only this, it adds new function of photo, motion detect, loop recording, power saving (auto shutdown, auto off-screen), etc. This DVR is the ideal choice for security & protection, evidence & investigation, like police, household, sports, automotive industry, shops, etc.. At the same time, with its stylish and high-end appearance, it also becomes the fashion choice of leisure goods.

Advantages：

Mini size and portable recorder with fashionable & new design;
5-inch super large HD screen (800X480pix), which provides clear and smooth image;
Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
Supports storage up to 32G TF card, which records up to 32 hours;
Supports 2.4G/5.8G wireless frequency(you should choose 2.4G or 5.8G when you order);

8 channels auto/manual switch;

Folding hidden external antenna assures excellent wireless receiving;

Supports AV IN function: receiving signal from wired cameras;

Photo function: it can take, review & store pictures;

Supports intelligent motion detect video recording;

Overwrite: It supports loop recording, which can automatically overwrite when storage is full;

Seamless continuous record:No intermittent recording, it will not miss any detail and wonderfulness;

Support power-saving mode: automatic shutdown, automatic off-screen;

Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions;

It’s of high compatibility, which supports almost all computer operating system, including MAC;
Supports multi-language.

Specifications:

Items			Value
Wireless Receiving	Wireless freq. (choose 1 of 6 )	(1)2.4GHz–8 channels	CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz. CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz
		(2) Within 5.8G-A 8 channels	CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
		(3) Beyond 5.8G-B 8 channels	CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz
		(4) Within 5.8G-C 8 channels	CH1: 5733MHz; CH2: 5752MHz; CH3: 5771MHz; CH4: 5790MHz. CH5: 5809MHz; CH6: 5828MHz; CH7: 5847MHz; CH8: 5866MHz
		(5) Within 5.8G-D 7channels for FPV	CH1: 5740MHz; CH2: 5760MHz; CH3: 5780MHz; CH4: 5800MHz. CH5: 5820MHz; CH6: 5840MHz; CH7: 5860MHz; CH8: SPI
		(6) Beyond 5.8G-E 7 channels for FPV	CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: SPI
	Sensitivity		-92dB
	Receiving distance		100 meters
AV IN	TV system		NTSC / PAL
	Output voltage		3.6-4.2 V
HD 5-inch LCD screen	Active area		108mm(W) X 64.8mm(H)
	Resolution		800 X 480 Pixel
	Luminance for LCM		200 cd/㎡
Cape clear 5-inch LCD screen	Active area		118mm(W) X 62.8mm(H)
	Resolution		480 X 272 Pixel
	Luminance for LCM）		300cd/㎡
Video	Resolution		720576 / 640480
	Video compress		MPEG-AVI 30fps
	Play format		MPEG-AVI
Audio	Frequency		20HZ-20KHz stereo
	Earphone Output		Left: 20MW+ right 20mW [16O](suit to largest volume)
	Speaker		1W
Photo	Format		JPG/JPEG
Storage	External SD card		TF card 1GB-32GB（optional）
	32GB recording time		10-32 hours
	1GB photos		15625pcs
Operating system	PC		Windows & Mac OS
	Port		USB 2.0
	Language		Multiple
Power	Voltage		DC 5V
	Current(receiving mode)		660MA
	Current( recording mode)		680MA
	Current（recording with off-screen mode）		340MA
	AC adapter		DC 5V 2A
	Built-in battery		Li-battery 3200Mah
Standby time	Wireless record		≥9.5 hours(off-screen); ≥5hours（on-screen）
	Wired record		≥12 hours(off-screen); ≥6hours（on-screen） *LED camera not included.
Size (L x W x H)			131mm x 86mm x 18mm
Weight(g)			205g

Packing:

Color Box: 19 x15 x8 cm Packing weight: 0.7KGS
